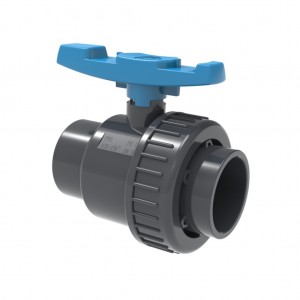

Single Union Ball Valve - Female Socket
Designed for efficient flow control in irrigation systems. Its robust construction and user-friendly features make it essential for effective agricultural water management.
- Features
- Specifications
- Enquiry
- Download
Features
- Single Union Design: Simplifies installation and maintenance without disrupting the system.
- Female Socket Connection: Ensures a secure, leak-proof fit with standard PVC pipes.
- Durable Materials: Corrosion-resistant for long-lasting performance in harsh conditions.
- Easy Operation: Quick quarter-turn mechanism for precise flow adjustments.
- Versatile Use: Suitable for drip and sprinkler irrigation systems.
- Pressure Rated: Reliable under varying flow conditions.
Specifications
Single Union Ball Valve-Female Socket Technical Specifications:
| Model | Size (mm) | DN | Working Pressure (bar) | Quantity/Bag (pcs) |
|---|---|---|---|---|
| NX200017.1 | 25 | 20(3/4") | 16 | - |
| NX200017.2 | 32 | 25(1') | 16 | 40 |
| NX200017.3 | 40 | 32(1 1/4") | 16 | - |
| NX200017.4 | 50 | 40(1 1/2") | 16 | 20 |
| NX200017.5 | 63 | 50(2") | 16 | 16 |
| NX200017.6 | 75 | 65(2 1/2") | 10 | 8 |
| NX200017.7 | 90 | 80(3") | 10 | 4 |
| NX200017.8 | 110 | 100(4") | 10 | 2 |
Enquiry
Downloads
Product Sheets
- Single Union Ball Valve – Female Socket Technical Product Sheet (PDF)
