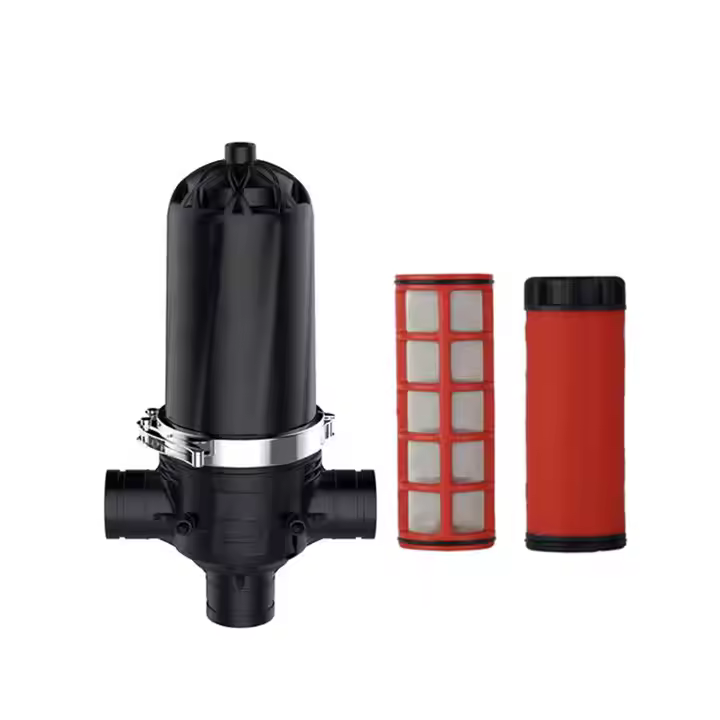

T Type Screen (Disc) Filter
An essential irrigation component designed to efficiently remove debris and contaminants from water, ensuring optimal system performance.
- Features
- Specifications
- Enquiry
- Download
Features
- Effective Filtration: Uses a screen mechanism to trap particles and prevent clogging.
- T-Shape Design: Allows for easy maintenance and quick access to the filter element.
- Durable Construction: Made from high-quality, corrosion-resistant materials for longevity.
- Variety of Sizes: Available in multiple sizes and mesh ratings for diverse irrigation needs.
- Easy Installation: Compatible with standard fittings for simple integration into existing systems.
- Flow Efficiency: Minimizes pressure loss while maintaining high flow rates.
- Versatile Applications: Suitable for agricultural, landscape, and residential irrigation.
Specifications
T Type Screen (Disc) Filter Technical Specifications:
| Model | Connections BSP/NPT | Filtration Grade (mesh) | Max Flow (m3/h) | PN (bar) | Filtering Surface (cm2) | Weight (kg) |
|---|---|---|---|---|---|---|
| NX200023.1 | 2” | 40/80/120/150/200/300 | 30 | 10 | 1200 | 7.50 |
| NX200023.2 | 2” Long | 40/80/120/150/200/300 | 30 | 10 | 1700 | 9.00 |
| NX200023.3 | 2-1/2” | 40/80/120/150/200/300 | 40 | 10 | 1200 | 7.5 |
| NX200023.4 | 2-1/2” Long | 40/80/120/150/200/300 | 40 | 10 | 1700 | 9 |
| NX200023.5 | 3” | 40/80/120/150/200/300 | 50 | 10 | 1200 | 7.5 |
| NX200023.6 | 3” Long | 40/80/120/150/200/300 | 50 | 10 | 1700 | 9 |
Enquiry
Downloads
Product Sheets
- T Type Disc (Screen) Filter Technical Product Sheet (PDF)
