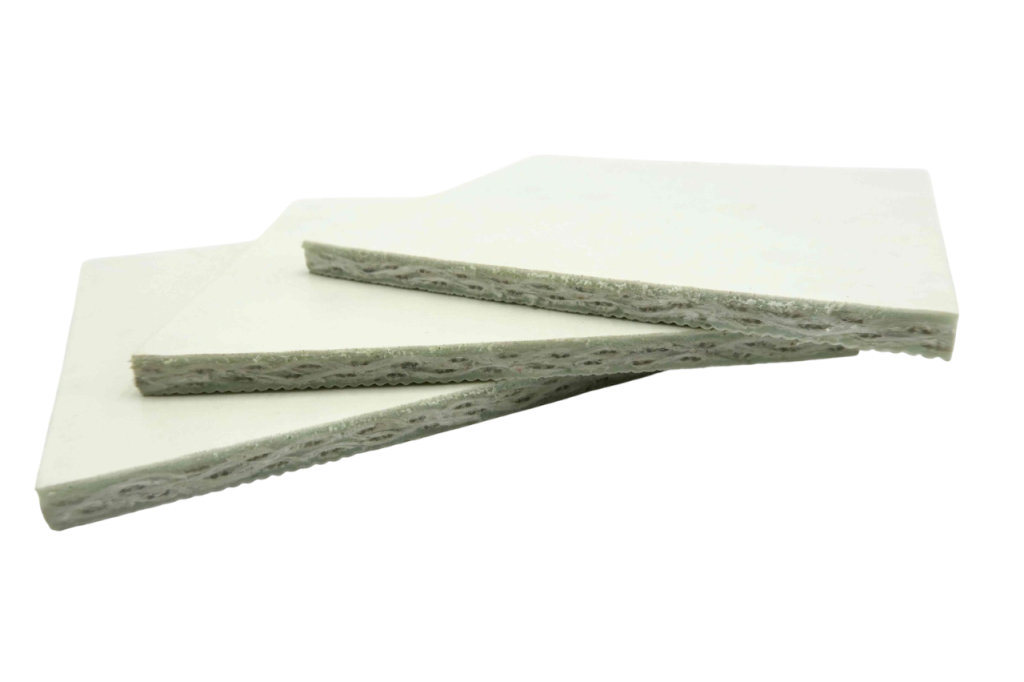

PVC Elevator Belts
NouRix PVC Elevator Belts are designed for efficient, lightweight, and reliable vertical conveying in agriculture, food processing, packaging, and light industrial applications. Manufactured from high-quality polyvinyl chloride (PVC), these belts offer excellent flexibility, smooth surface finish, and strong adhesion between plies, ensuring stable performance and long service life.
Ideal for grain, feed, seeds, fertilizers, packaged goods, and food-grade materials, NouRix PVC elevator belts provide a cost-effective solution where strength, hygiene, and efficiency are essential.
- Features
- Specifications
- Enquiry
- Download
-
Clean, hygienic conveying – smooth PVC cover for low residue and easy cleaning; food-grade options available.
-
Stable & low stretch – EP carcass holds tension for accurate bucket spacing and consistent elevator speed.
-
High bucket pull-out strength – strong rubber–fabric adhesion and reinforced plies support secure bolting and long service life.
-
Moisture & corrosion resistant – PVC compound resists water, fertiliser vapours, and mild chemicals.
-
Oil/grease-resistant grades – protects against fats and oily grains/feeds.
-
Anti-static & flame-retardant options – safer operation in dusty silos and handling plants.
-
Temperature capability – typical working range -10°C to +80°C (special compounds on request).
-
Quiet, energy-efficient running – lightweight construction reduces drive load.
-
Custom drilling & jointing – factory pre-punched hole patterns to match your buckets; mechanical fasteners or finger-splice options.
-
Made-to-order sizes – widths and thicknesses tailored to bucket profile and elevator casing.
-

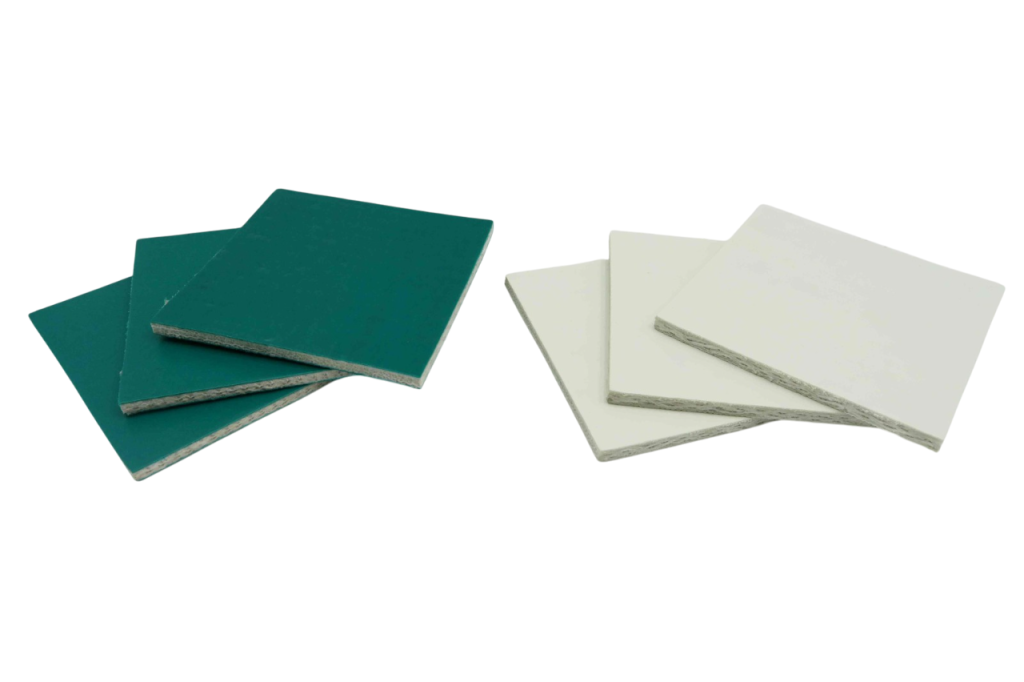

Compounds: Standard PVC, Food-grade (white/green), Oil-resistant, Anti-static, Flame-retardant
-
Carcass: 1–4 plies EP (selection based on duty and head pulley diameter)
-
Edges: Cut or sealed edges for hygiene and fray control
-
Jointing: Mechanical fasteners/clamps or hot-vulcanised finger splice
-
Services: Hole punching to your bucket drawing, belt length calculation, and fastener selection support
PVC Elevator Belts Technical Specifications:
| Model | Color | Tensile Strength (N/mm) | Thickness (mm) | Operating Temperature (°C) | Elongation at Rated Load (%) | Min. Pulley Diameter (mm) |
|---|---|---|---|---|---|---|
| PVC480 | Green | 580 | 4.8 ± 0.3 | -20 ~ +85 | ≤0.7 | ≥100 |
| PVC680 | Green | 780 | 6.1 ± 0.3 | -20 ~ +85 | ≤0.8 | ≥120 |
| PVC880 | Green | 980 | 7.2 ± 0.3 | -20 ~ +85 | ≤0.8 | ≥150 |
| PVC1080 | Green | 1180 | 8.3 ± 0.3 | -20 ~ +85 | ≤1.0 | ≥250 |
Product Sheets
- PVC-Elevator-Belts-Technical-Product-SheetPDF.pdf
