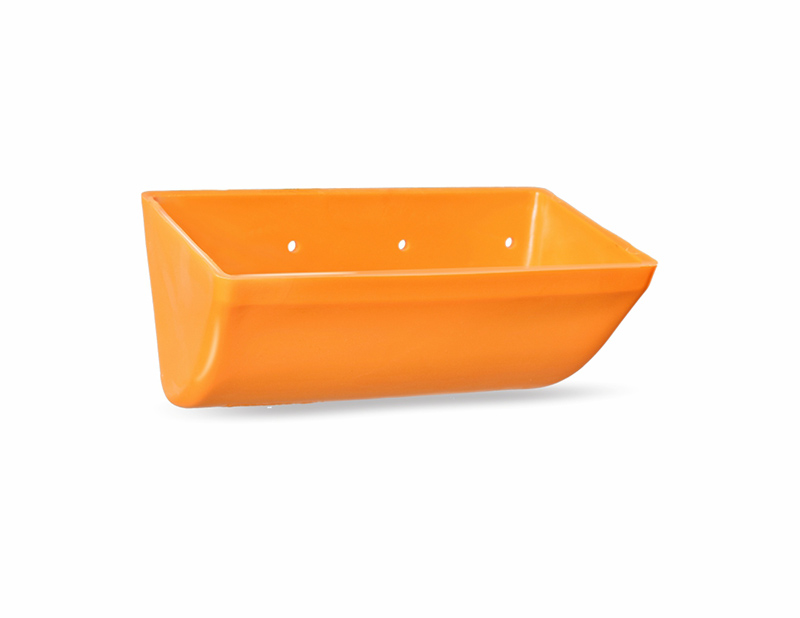

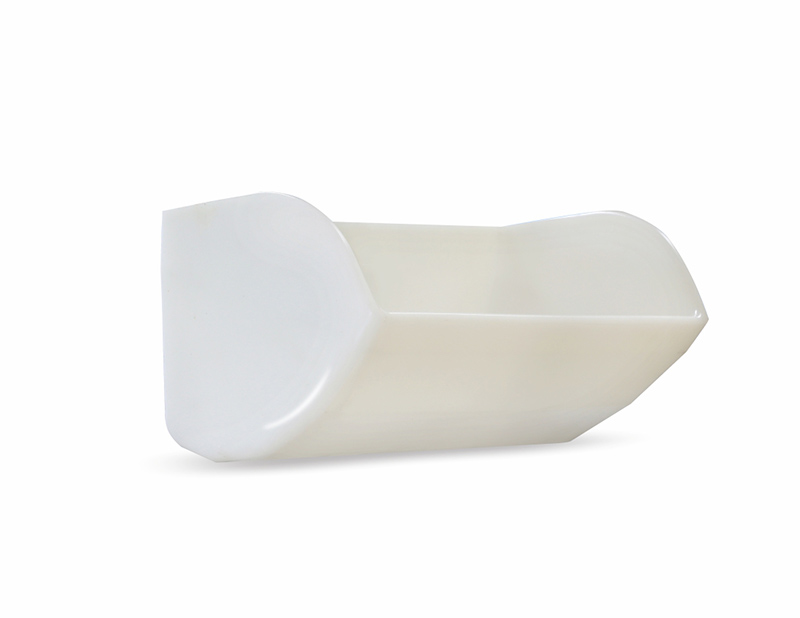

Plastic Elevator Buckets
NouRix Plastic Elevator Buckets are lightweight, durable, and corrosion-resistant solutions for vertical bulk handling. Manufactured from high-strength plastics, they provide excellent wear resistance, smooth discharge, and reduced weight compared to steel alternatives. Ideal for grain, feed, fertilizer, and food processing, these buckets ensure efficient and reliable operation in agricultural and industrial elevators.
- Features
- Specifications
- Enquiry
- Download
Features
-
Lightweight design for reduced energy consumption
-
High strength with excellent impact and wear resistance
-
Corrosion-resistant, suitable for grain, feed, and fertilizer applications
-
Smooth inner surface for clean and efficient material discharge
-
Available in a wide range of sizes and styles to fit standard elevators
-
Long service life with minimal maintenance required
Specifications
Plastic Elevator Buckets Technical Specifications:
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | Hole Qty | Hole Ø (mm) | Volume (Z-Y)+10% (L) | Volume (Z-Y) (L) |
|---|---|---|---|---|---|---|---|---|---|
| D4X3 | 107 | 82 | 75 | 22 | 50 | 2 | 7 | 0.31 | 0.28 |
| D5X4 | 134 | 116 | 92 | 32 | 60 | 2 | 7 | 0.77 | 0.70 |
| D6X4 | 159 | 116 | 105 | 32 | 90 | 2 | 7 | 0.88 | 0.80 |
| D7X4 | 185 | 112 | 105 | 32 | 120 | 2 | 9 | 1.08 | 0.98 |
| D6X5 | 168 | 145 | 130 | 40 | 90 | 2 | 9 | 1.32 | 1.20 |
| D7X5 | 192 | 145 | 130 | 40 | 120 | 2 | 9 | 1.54 | 1.40 |
| D8X5 | 211 | 145 | 130 | 40 | 120 | 2 | 9 | 1.71 | 1.55 |
| D9X5 | 237 | 148 | 130 | 40 | 85 | 3 | 9 | 2.10 | 1.90 |
| D10X5 | 266 | 145 | 130 | 45 | 90 | 3 | 9 | 2.11 | 1.92 |
| D11X5 | 289 | 145 | 130 | 45 | 100 | 3 | 9 | 2.55 | 2.31 |
| D8X6 | 211 | 168 | 150 | 45 | 120 | 2 | 9 | 2.24 | 2.04 |
| D9X6 | 239 | 173 | 150 | 45 | 85 | 3 | 9 | 2.72 | 2.47 |
| D10X6 | 268 | 164 | 154 | 45 | 90 | 3 | 9 | 3.08 | 2.80 |
| D11X6 | 289 | 174 | 154 | 45 | 100 | 3 | 9 | 3.35 | 3.04 |
| D12X6 | 312 | 174 | 154 | 45 | 85 | 4 | 9 | 4.07 | 3.70 |
| D13X6 | 338 | 168 | 154 | 45 | 85 | 4 | 9 | 3.99 | 3.62 |
| D14X6 | 368 | 168 | 154 | 50 | 95 | 4 | 9 | 4.39 | 3.99 |
| D10X7 | 269 | 197 | 180 | 45 | 90 | 3 | 9 | 4.36 | 3.95 |
| D11X7 | 287 | 197 | 180 | 45 | 100 | 3 | 9 | 4.60 | 4.15 |
| D12X7 | 324 | 200 | 180 | 45 | 85 | 4 | 9 | 5.70 | 5.18 |
| D13X7 | 345 | 200 | 180 | 45 | 90 | 4 | 9 | 5.60 | 5.07 |
| D14X7 | 369 | 200 | 180 | 50 | 95 | 4 | 9 | 5.94 | 5.40 |
| D15X7 | 392 | 197 | 180 | 50 | 100 | 4 | 9 | 6.85 | 6.22 |
| D16X7 | 427 | 197 | 180 | 50 | 85 | 5 | 9 | 7.34 | 6.67 |
| D11X8 | 305 | 220 | 206 | 55 | 75 | 4 | 9 | 6.46 | 5.87 |
| D12X8 | 315 | 222 | 206 | 55 | 85 | 4 | 9 | 6.82 | 6.20 |
| D14X8 | 367 | 227 | 206 | 55 | 95 | 4 | 9 | 8.20 | 7.45 |
| D15X8 | 392 | 222 | 206 | 55 | 80 | 5 | 9 | 9.23 | 8.39 |
| D16X8 | 417 | 224 | 206 | 55 | 85 | 5 | 9 | 10.90 | 9.90 |
| D18X8 | 468 | 223 | 206 | 55 | 95 | 5 | 9 | 11.80 | 10.70 |
| D20X8 | 527 | 230 | 206 | 55 | 90 | 6 | 11 | 12.90 | 11.70 |
| D22X8 | 585 | 237 | 206 | 55 | 100 | 6 | 11 | 13.75 | 12.50 |
| D16X9 | 430 | 260 | 260 | 65 | 68 | 6 | 11 | 12.10 | 11.00 |
| S14X8 | 365 | 223 | 172 | 50 | 76.2 | 5 | 9 | 8.80 | 8.00 |
| S16X8 | 416 | 225 | 172 | 50 | 89 | 5 | 9 | 9.57 | 8.70 |
| S18X8 | 470 | 223 | 172 | 50 | 79.38 | 6 | 9 | 11.55 | 10.50 |
Enquiry
Downloads
Product Sheets
- Elevator Buckets Technical Product Sheet(PDF)
