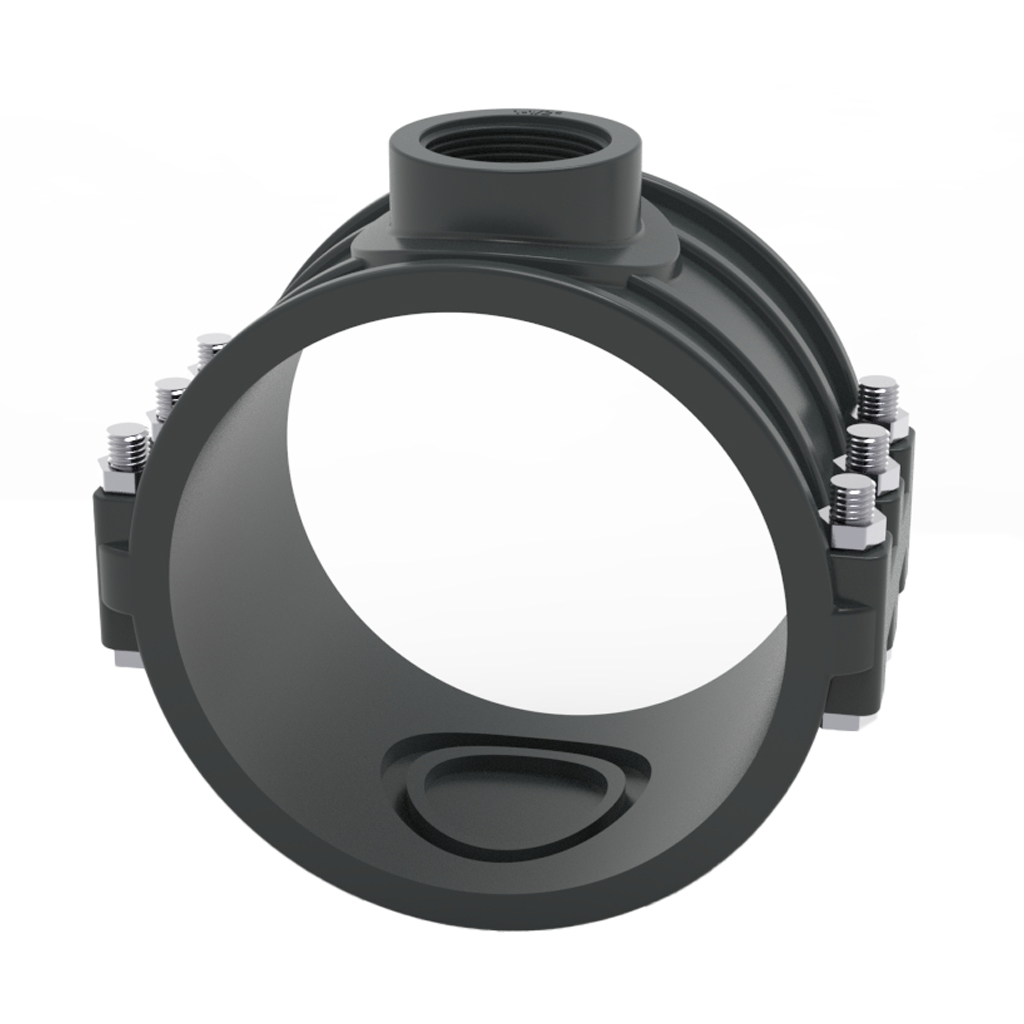

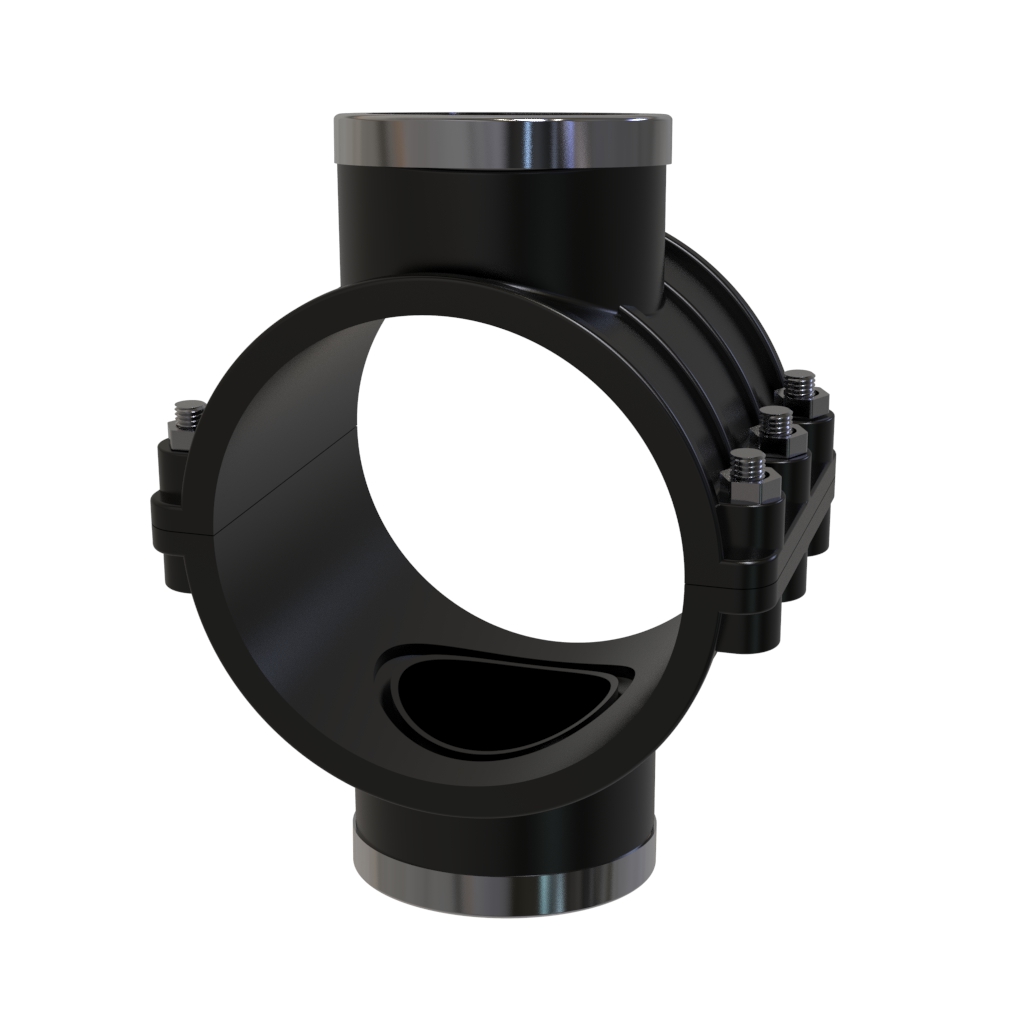

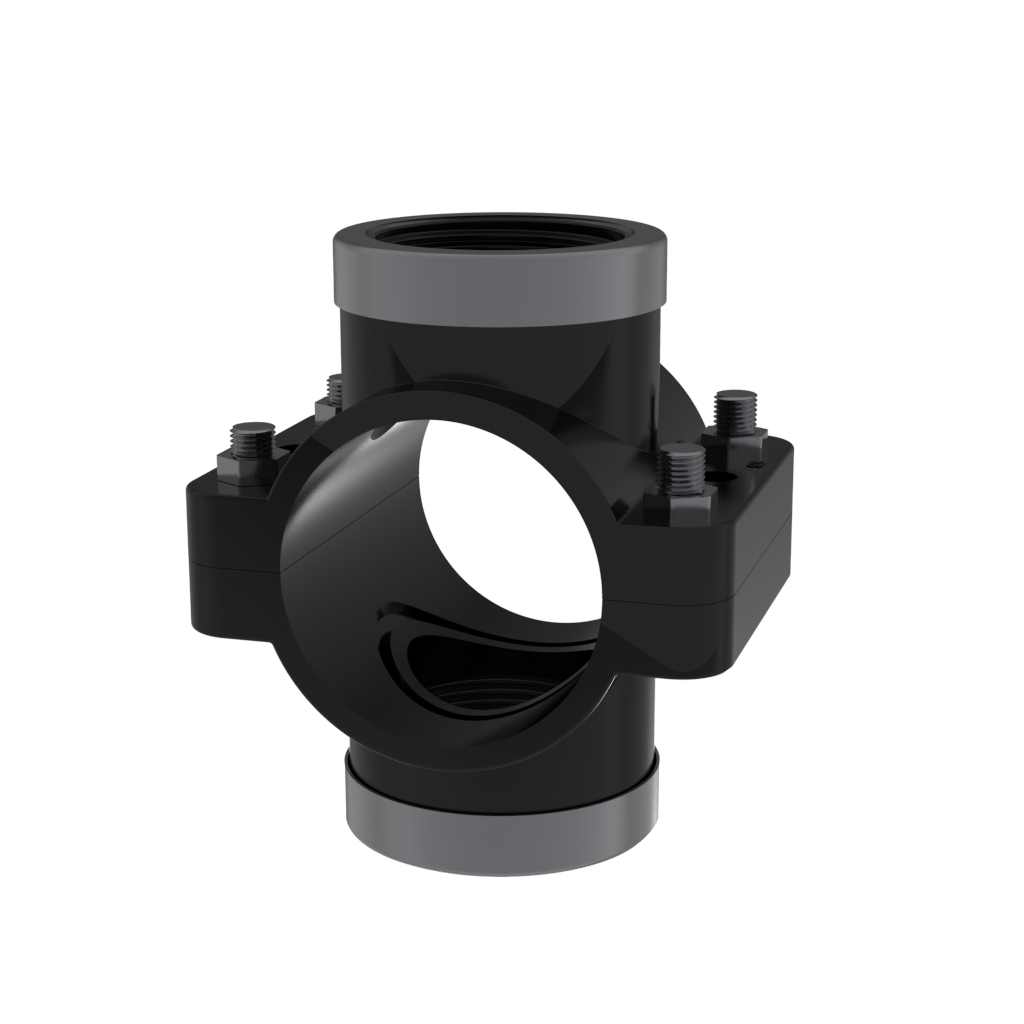

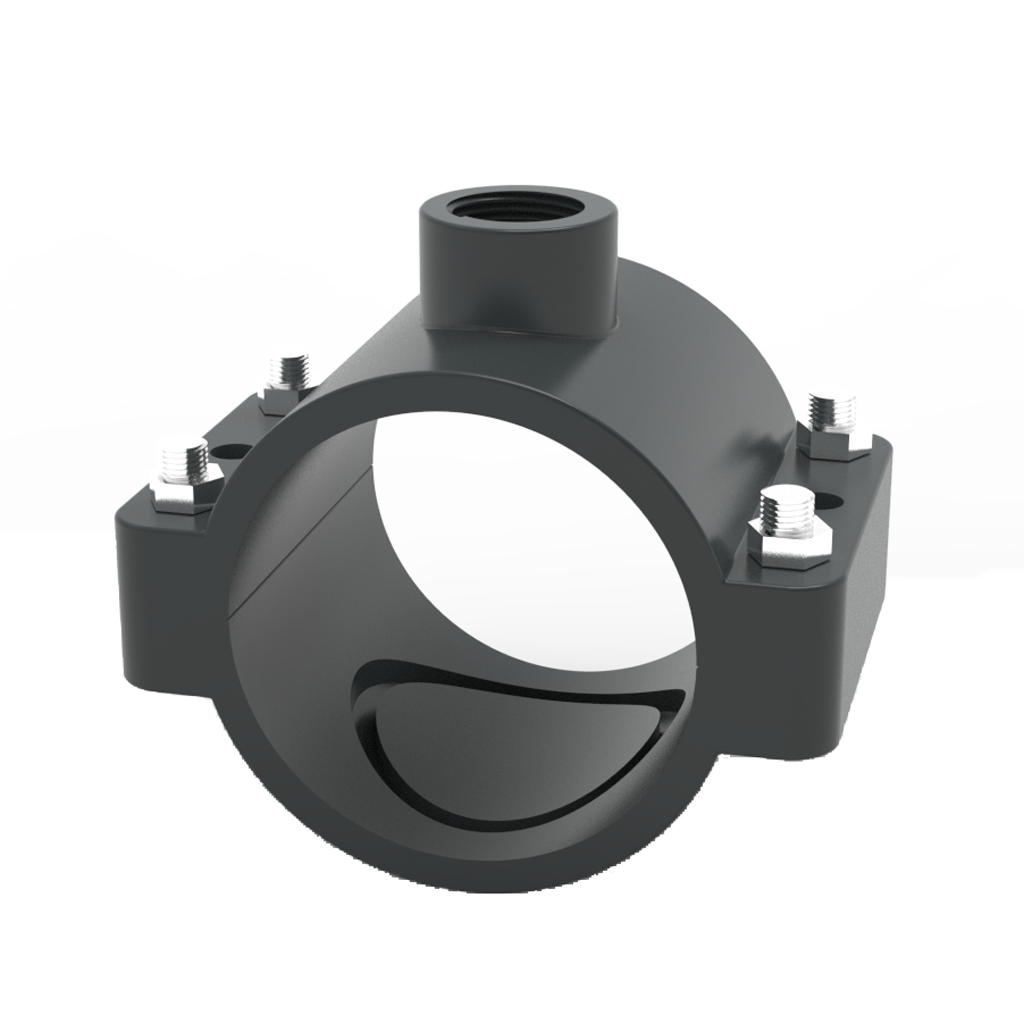

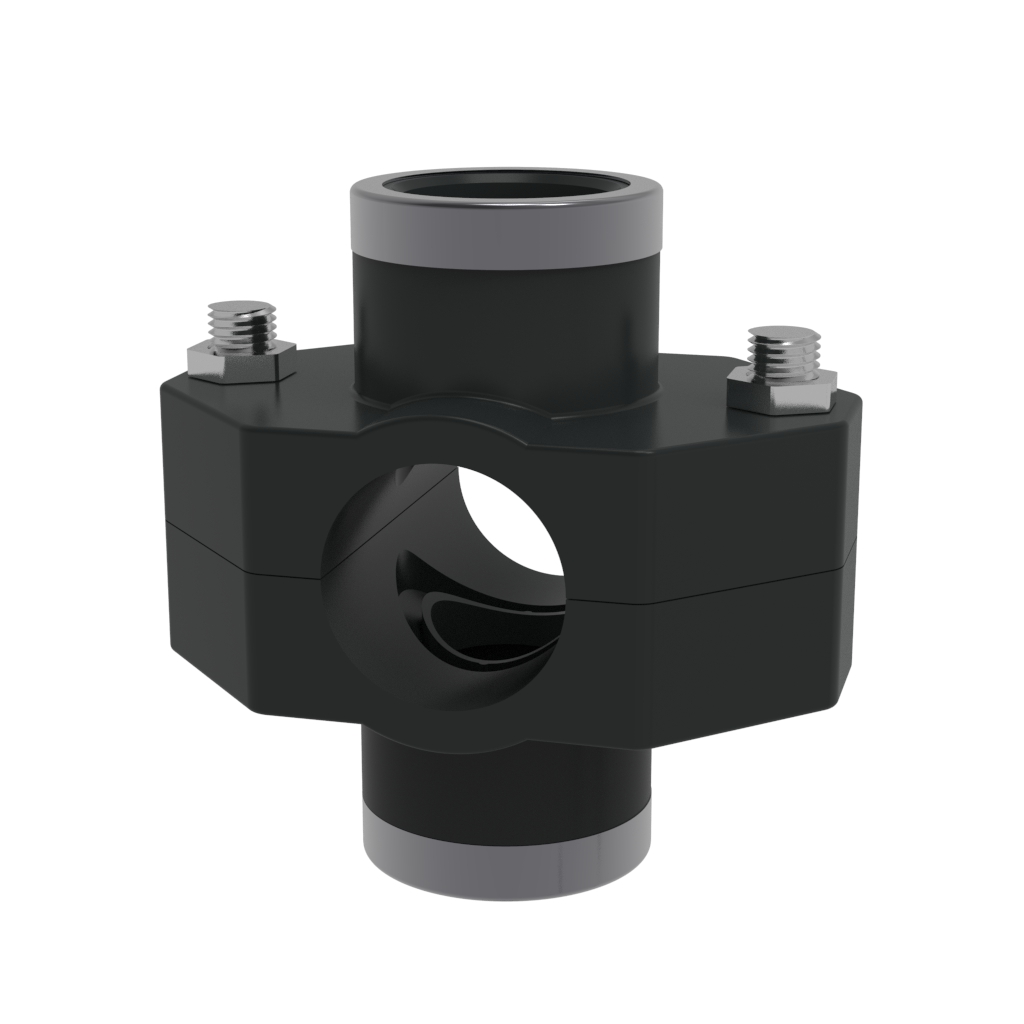

Pipe Saddles
Designed to provide secure, leak-proof connections to the irrigation pipes.
- Features
- Specifications
- Enquiry
- Download
Features
- Quick Installation: Simple attachment to main lines.
- Secure Connection: Minimizes leaks for effective water distribution.
- Durable Material: Made from PP (polypropylene) for chemical and UV resistance.
- Pressure Rating: Rated for PN 10, suitable for various applications.
- Thread Type: BSPT for standard compatibility.
- Versatile Compatibility: Fits various pipe sizes, including PVC and HDPE.
- Consistent Flow: Ensures reliable water distribution.
Specifications
Irrigation Pipe Saddles Technical Specifications:
| Model | Inner Diameter * Outer Diameter | Quantity/Box (pcs) | Pipe - Outer Diameter |
|---|---|---|---|
| NX00071.1 | 25mm (1/2”) | 260 | 25mm |
| NX00071.2 | 25mm (3/4”) | 260 | 25mm |
| NX00071.3 | 32mm (1/2”) | 210 | 32mm |
| NX00071.4 | 32mm (3/4”) | 210 | 32mm |
| NX00071.5 | 32mm (1”) | - | 32mm |
| NX00071.6 | 40mm (1/2”) | 180 | 40mm |
| NX00071.7 | 40mm (3/4”) | 180 | 40mm |
| NX00071.8 | 40mm (1”) | 180 | 40mm |
| NX00071.9 | 50mm (3/4”) | - | 50mm |
| NX00071.10 | 50mm (1/2”) | 130 | 50mm |
| NX00071.11 | 50mm (3/4”) | 120 | 50mm |
| NX00071.12 | 50mm (1”) | 120 | 50mm |
| NX00071.13 | 50mm (1-1/4”) | 110 | 50mm |
| NX00071.14 | 50mm (1-1/2”) | - | 50mm |
| NX00071.15 | 63mm (1/2”) | 100 | 63mm |
| NX00071.16 | 63mm (3/4”) | 100 | 63mm |
| NX00071.17 | 63mm (1-1/4”) | 100 | 63mm |
| NX00071.18 | 63mm (1-1/2”) | 80 | 63mm |
| NX00071.19 | 63mm (2”) | 80 | 63mm |
| NX00071.20 | 75mm (1/2”) | - | 75mm |
| NX00071.21 | 75mm (3/4”) | 70 | 75mm |
| NX00071.22 | 75mm (1”) | 70 | 75mm |
| NX00071.23 | 75mm (1-1/4”) | 70 | 75mm |
| NX00071.24 | 75mm (1-1/2”) | 60 | 75mm |
| NX00071.25 | 75mm (2”) | 60 | 75mm |
| NX00071.26 | 90mm (1/2”) | 50 | 90mm |
| NX00071.27 | 90mm (3/4”) | 70 | 90mm |
| NX00071.28 | 90mm (1”) | 60 | 90mm |
| NX00071.29 | 90mm (1-1/4”) | 60 | 90mm |
| NX00071.30 | 90mm (1-1/2”) | 60 | 90mm |
| NX00071.31 | 90mm (2”) | 50 | 90mm |
| NX00071.32 | 110mm(1/2”) | 40 | 110mm |
| NX00071.33 | 110mm(3/4”) | 40 | 110mm |
| NX00071.34 | 110mm(1”) | 40 | 110mm |
| NX00071.35 | 110mm(1-1/4”) | 40 | 110mm |
| NX00071.36 | 110mm(1-1/2”) | 35 | 110mm |
| NX00071.37 | 110mm(2”) | 35 | 110mm |
| NX00071.38 | 110mm(3”) | - | 110mm |
Enquiry
Downloads
Product Sheet
- Irrigation Pipe Saddles Technical Product Sheet (PDF)
