Perforated Corrugated Pipe (AG Pipe)

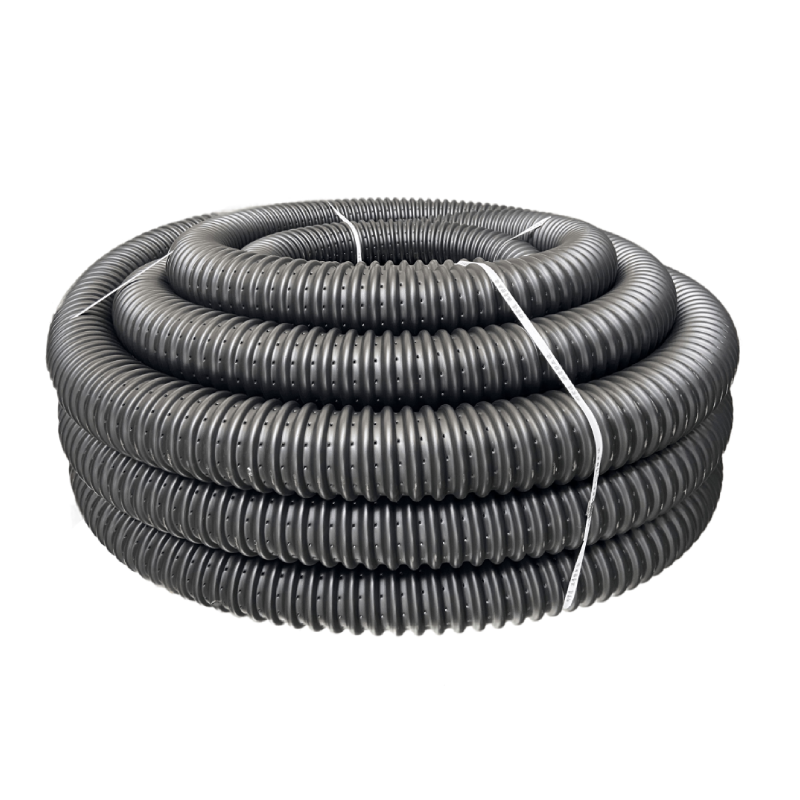

Commonly referred to as AG-Pipe, AG-Line or Draincoil, Slotted Agricultural Line is a flexible, corrugated drainage pipe.
- Features
- Specifications
- Enquiry
- Download
Features
- Flexible Design: Easily bends and conforms to various layouts for straightforward installation.
- Perforated Surface: Slotted design promotes efficient drainage and soil aeration.
- Durable Material: Constructed from high-density polyethylene (HDPE) for resistance to chemicals, corrosion, and UV rays.
- Lightweight: Easy to transport and handle, reducing installation labor.
- Versatile Applications: Suitable for agricultural drainage, landscaping, plumbing, and civil engineering projects.
- Effective Water Management: Helps prevent waterlogging and enhances soil health.
- Available in Various Sizes: Comes in multiple diameters and lengths to fit specific project needs.

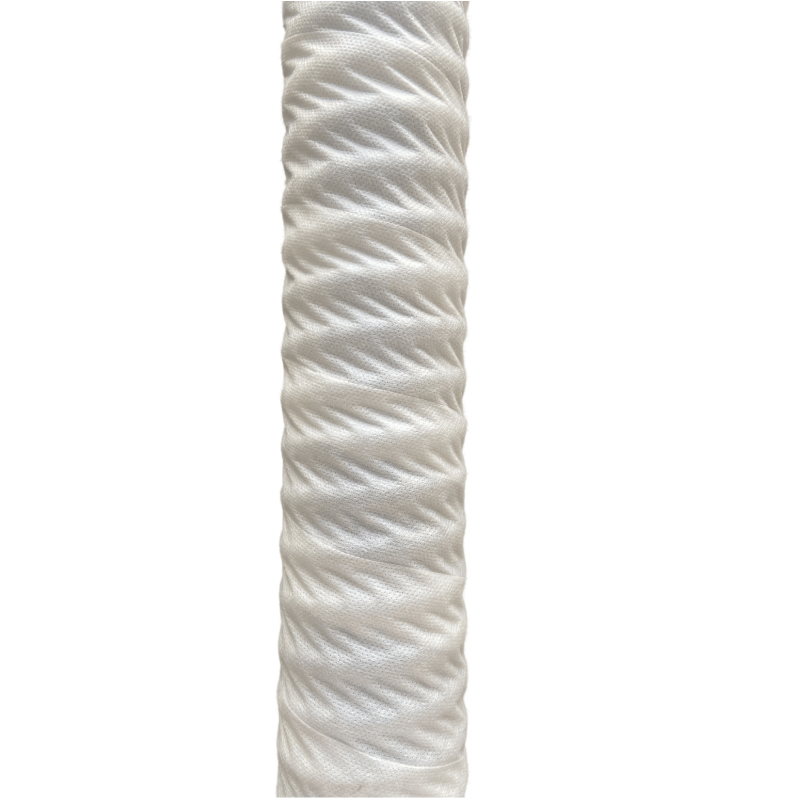

- Customizable Options: Available with or without a standard filter sock for additional filtration and protection.
Specifications
Perforated Corrugated Pipes(Slotted) Technical Specifications:
| Nominal Dia.(mm) | Outer Dia. (mm) | Inner Dia. (mm) | Outer Dia/Roll (m) | Height/Roll (m) | Thickness (mm) | Meter/Roll (m) |
|---|---|---|---|---|---|---|
| 50 | 65 | 50 | 1.45 | 0.57 | 1.0 | 200 |
| 65 | 75 | 65 | 1.20 | 0.53 | 1.2 | 200 |
| 100 | 100 | 80 | 1.13 | 0.52 | 1.5 | 50 |
| 125 | 145 | 122 | 1.65 | 0.60 | 1.5 | 50 |
| 150 | 168 | 147 | 1.90 | 0.65 | 1.5 | 50 |
| 200 | 168 | 147 | 1.90 | 0.65 | 1.5 | 50 |
Enquiry
Downloads
Product Sheet
- Corrugated Drainage Pipe Technical Product Sheet (PDF)
