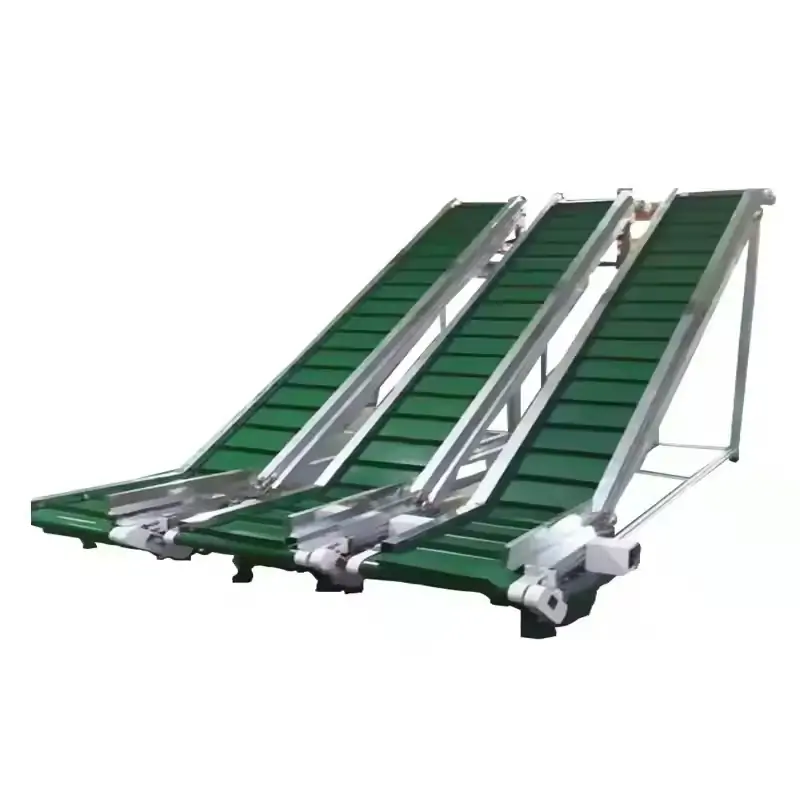

Inclined Belt Conveyor (PU / PVC / Rubber)
Inclined Belt Conveyors are reliable solution for high-inclination and vertical material transport. Designed with PVC, PU, or rubber belts, it efficiently handles bulk, block, and powder materials across multiple industries. Unlike traditional flat conveyors, it ensures smooth, space-saving, and energy-efficient conveying at angles of up to 90°.
- Features
- Specifications
- Enquiry
- Download
Features
- Steep conveying up to 90° – reduces floor space requirements

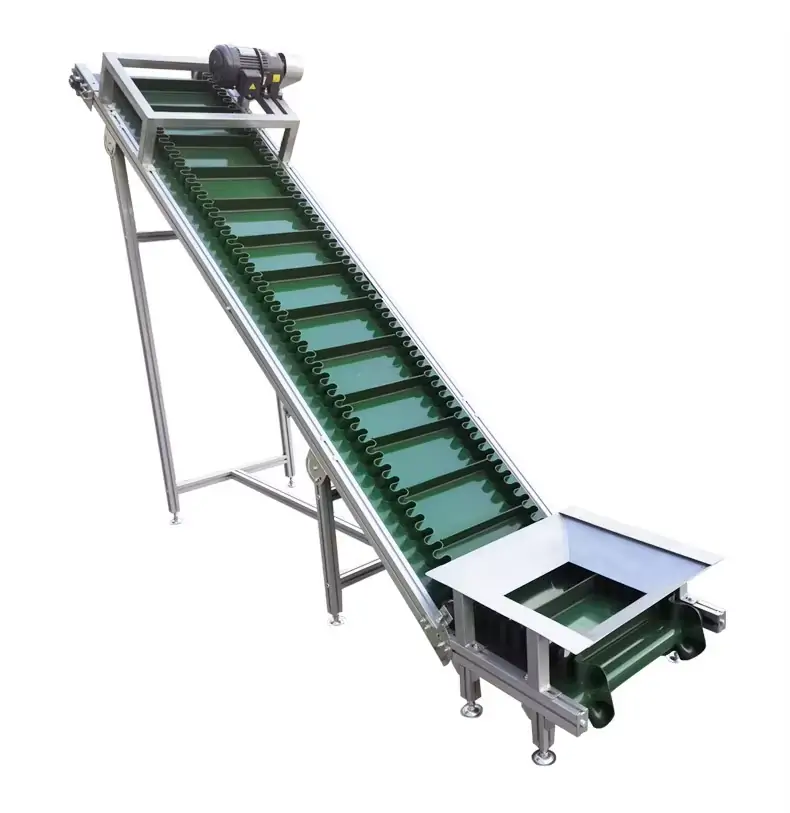

- Safe and reliable transport – climbing belts with side guards and partitions prevent spillage
- Customizable design – belt widths (300–800 mm), heights, speeds, and load capacities tailored to your operation

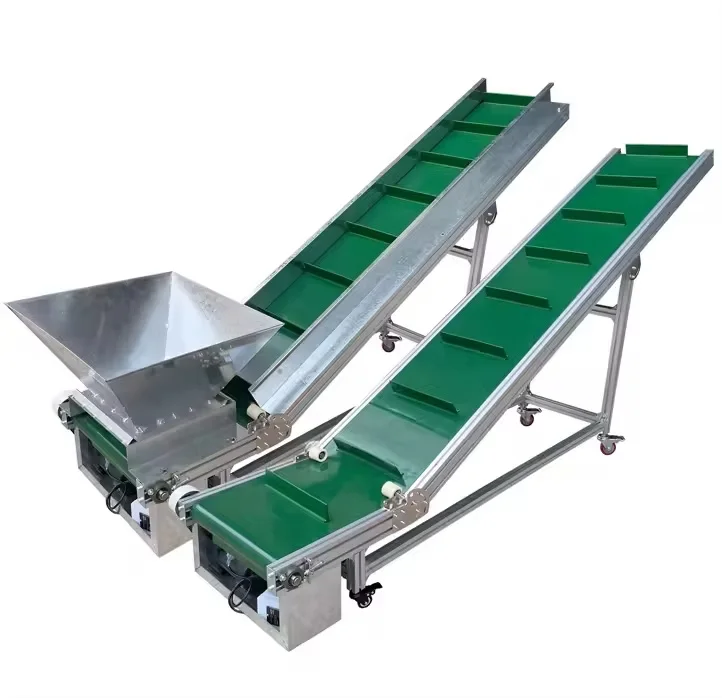

- Versatile loading & unloading – integrated feeders for smooth and precise delivery
- Durable construction – available in SUS304 stainless steel (food grade) or carbon steel, with fixed or variable speed options
Specifications
Inclined Belt Conveyors Technical Specifications:
| Belt Width (mm) | Sidewall Height (mm) | Capacity @30° (t/h) | Capacity @45° (t/h) | Capacity @60° (t/h) |
|---|---|---|---|---|
| 300 | 40 | 15 | 11 | 8 |
| 300 | 60 | 14 | 10 | 7 |
| 400 | 60 | 20 | 14 | 10 |
| 400 | 80 | 34 | 26 | 18 |
| 500 | 80 | 46 | 35 | 25 |
| 500 | 120 | 71 | 57 | 40 |
| 650 | 120 | 104 | 83 | 58 |
| 650 | 160 | 120 | 97 | 69 |
| 800 | 120 | 128 | 102 | 72 |
| 800 | 160 | 157 | 127 | 90 |
| 800 | 200 | 195 | 157 | 112 |
| 800 | 240 | 235 | 195 | 142 |
Enquiry
Downloads
Product Sheets
- Inclined Belt Conveyor Technical Product Sheet(PDF)
