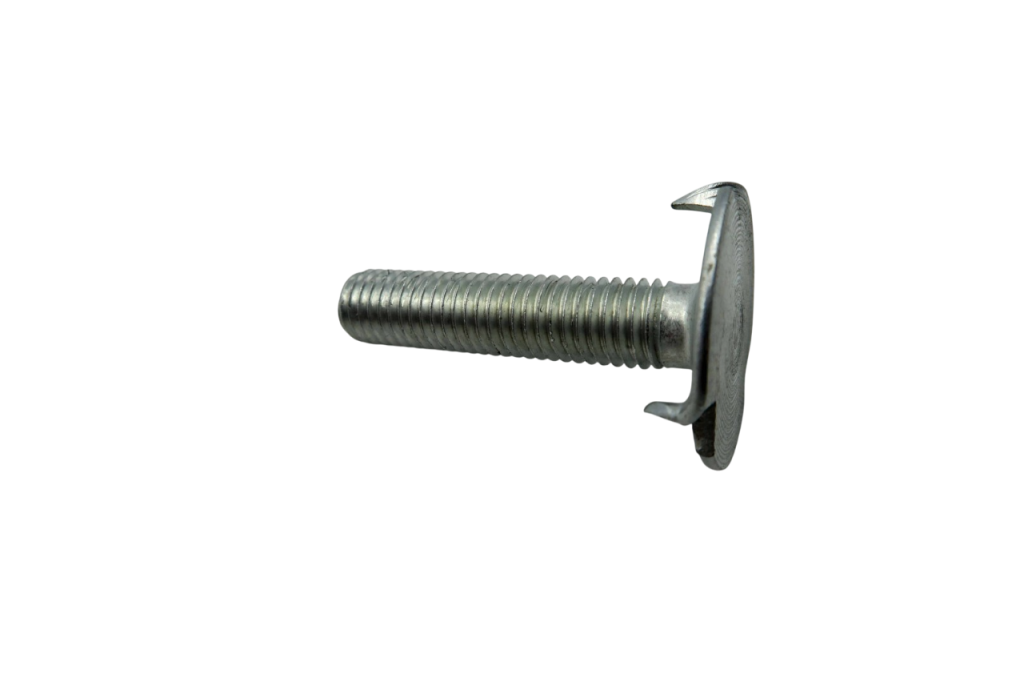

Elevator Bucket Bolts
Elevator Bucket Bolts (Tooth Head Bolts) are manufactured with high-precision tolerance (6g) and strength grade 4.8–5.6. The surface is zinc-plated for enhanced corrosion resistance. These bolts are designed for bucket elevator applications, especially for large-capacity elevators or heavy-duty buckets with high projections, where reliable fastening and impact resistance are critical. NouRix also supplies matched nuts for secure bucket fastening.
- Features
- Specifications
- Enquiry
- Download
Features
-
High-precision tolerance (6g) with stable performance
-
Strength grade 4.8–5.6 for durability under load
-
Zinc-plated finish for corrosion resistance
-
Specially designed for elevator bucket fastening
-
Suitable for large capacity and heavy-duty buckets
-
Withstands high impact loads during operation
Specifications
Elevator Bucket Bolts Technical Specifications:
| Size (mm) | d | D | L | Quantity/Box |
|---|---|---|---|---|
| M6×25 | M6 | 25 | 25 | 2000 |
| M6×30 | M6 | 25 | 30 | 2000 |
| M6×38 | M6 | 25 | 38 | 1500 |
| M8×30 | M8 | 27 | 30 | 1000 |
| M8×35 | M8 | 27 | 35 | 1000 |
| M8×42 | M8 | 27 | 42 | 1000 |
| M8×45 | M8 | 27 | 45 | 1000 |
| M10×35 | M10 | 30 | 35 | 600 |
| M10×45 | M10 | 30 | 45 | 600 |
| M10×50 | M10 | 30 | 50 | 600 |
Enquiry
Downloads
Product Sheets
- Elevator Bucket Bolts Technical Product Sheet(PDF)
