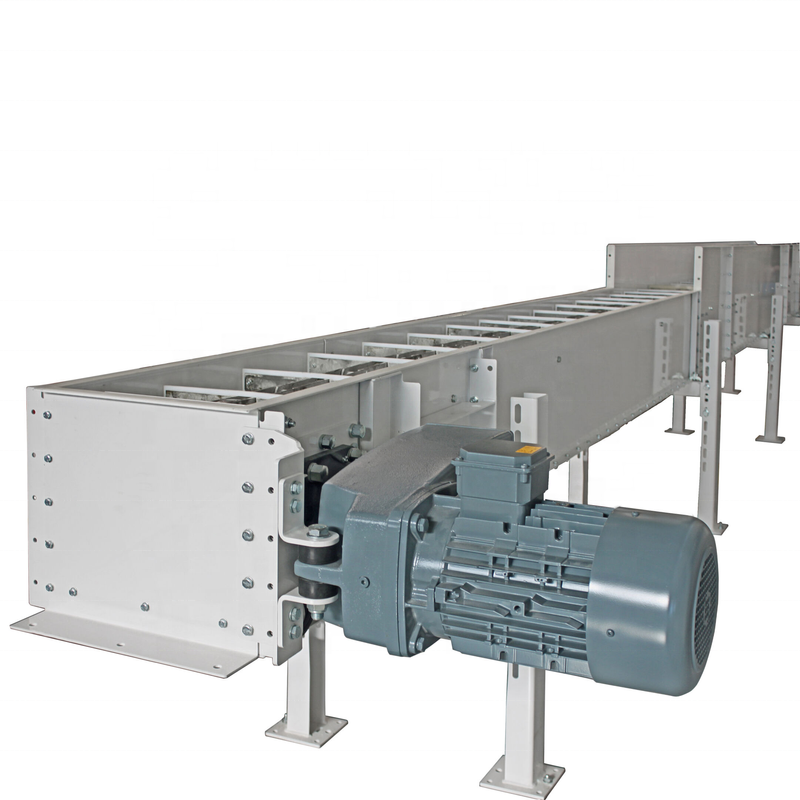

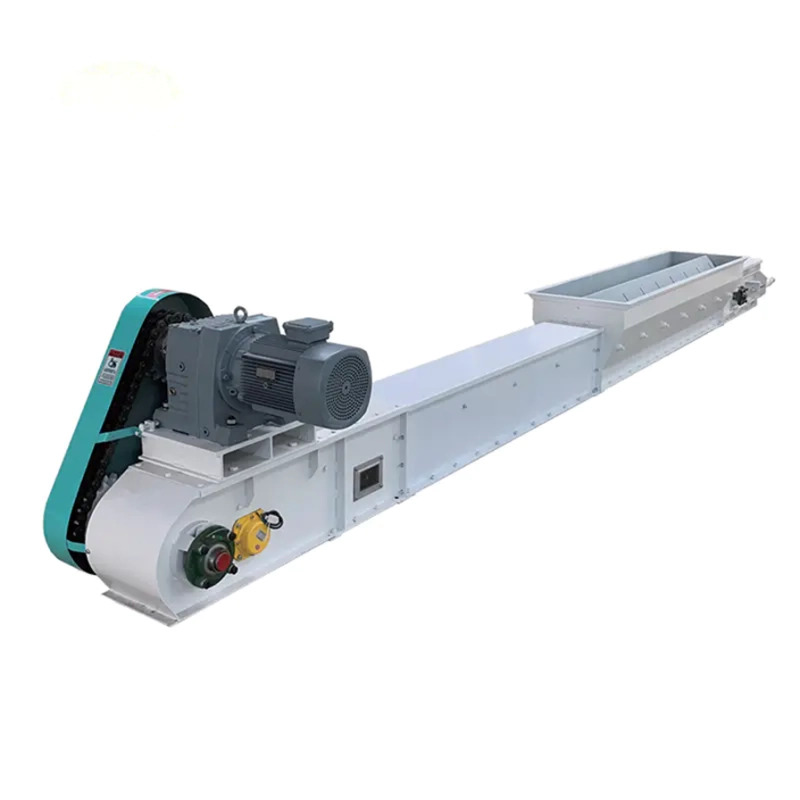

Drag Conveyors
NouRix Drag Conveyors deliver efficient and reliable bulk material handling for grains, powders, pellets, and ores. Durable, low-maintenance, and customizable, they boost productivity across agriculture, mining, food processing, and industrial applications.
- Features
- Specifications
- Enquiry
- Download
-
High Capacity Range: Capable of handling material flow from 20 to 500 t/h, ensuring flexibility for different operations.
-
Customizable Length: Conveying length can reach up to 60 meters, extendable with additional units for larger systems.
-

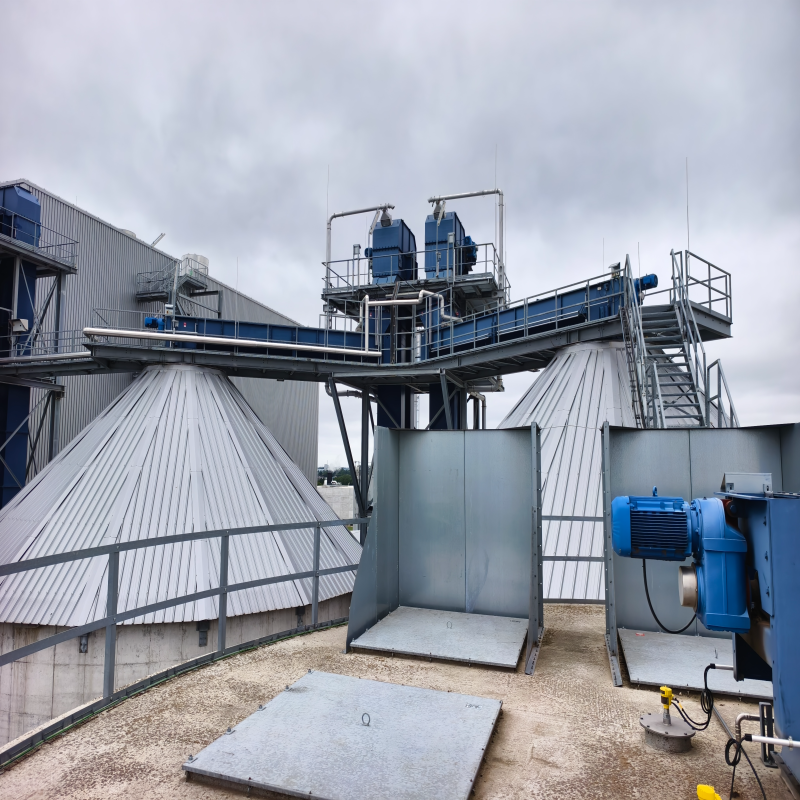

Variable Inclination: Suited for horizontal to 30° inclined installations, offering flexibility for space and site layouts.
-
Optimized Chain Speed: Adjustable chain speed from 0.16 – 0.50 m/s, providing control over material movement.
-
Energy Efficiency: Power requirements vary from 2.2 kW to 55 kW, optimized to balance performance with energy consumption.
-
Heavy-Duty Chain: Drop-forged/welded round-link chains provide robust performance and long-lasting durability.
-
Versatile Casing Options: Choose from mild steel, stainless steel, or wear-resistant liners, based on material type and environment.
-
Flexible Discharge: Multiple discharge outlets with manual or automated gates, giving flexibility for different operational needs.
Drag Conveyors Technical Specifications:
| Model | Trough Width (mm) | Capacity (t/h) | Chain Speed (m/s) | Max Length (m) | Power (kW) | Notes |
|---|---|---|---|---|---|---|
| DC16 | 160 | 15 – 30 | 0.16 – 0.32 | 30 | 2.2 – 5.5 | Impact, ideal for small grain storage facilities |
| DC25 | 250 | 40 – 80 | 0.16 – 0.32 | 40 | 4 – 11 | Suitable for feed mills and grain transfer |
| DC32 | 320 | 80 – 150 | 0.16 – 0.40 | 50 | 7.5 – 15 | High throughput, durable forged chain |
| DC40 | 400 | 120 – 220 | 0.20 – 0.40 | 55 | 11 – 22 | Popular for bulk grain and fertilizer handling |
| DC50 | 500 | 200 – 400 | 0.25 – 0.50 | 60 | 15 – 37 | Heavy-duty industrial model with long service life |
Product Sheets
- Drag Conveyor Technical Product Sheet(PDF)
